Car Air-Con
Compressor Oil


ABOUT

1

ABOUT

Compressor Oil lubricates the compressor parts for proper functioning.

The use of incorrect compressor oils, such as universal oils or oil mixtures, inevitably leads to seizure and damage. This is because universal oils, often preferred by garages, are PAO-oils or mineral oils with a different viscosity to that of synthetic PAG-oils. PAO-oils do not mix well with PAG-oils and with refrigerant R134a or R1234yf, leading to poor lubrication and increased wear.

Furthermore, the different viscosities cause a thinner oil film to form between the cylinder and piston, leading to seizure or the reduction in the life expectancy of the compressor.

For refilling of compressor oil, refer to the compressor identification label to identify the correct oil type and amount of oil inside the compressor. For COOL GEAR compressor, you can also refer to COOL GEAR Car AC and Radiator Catalogue for the amount required for top-up.


COMPRESSOR TYPE TO REFRIGERANT TYPE TO OIL TYPE

1

COMPRESSOR TYPE TO REFRIGERANT TYPE TO OIL TYPE

Compressor Type

Refrigerant Type

Oil Type

Type ranges (#PA, #S, #SB, #SE, #SC)

HFC134a (R134a)

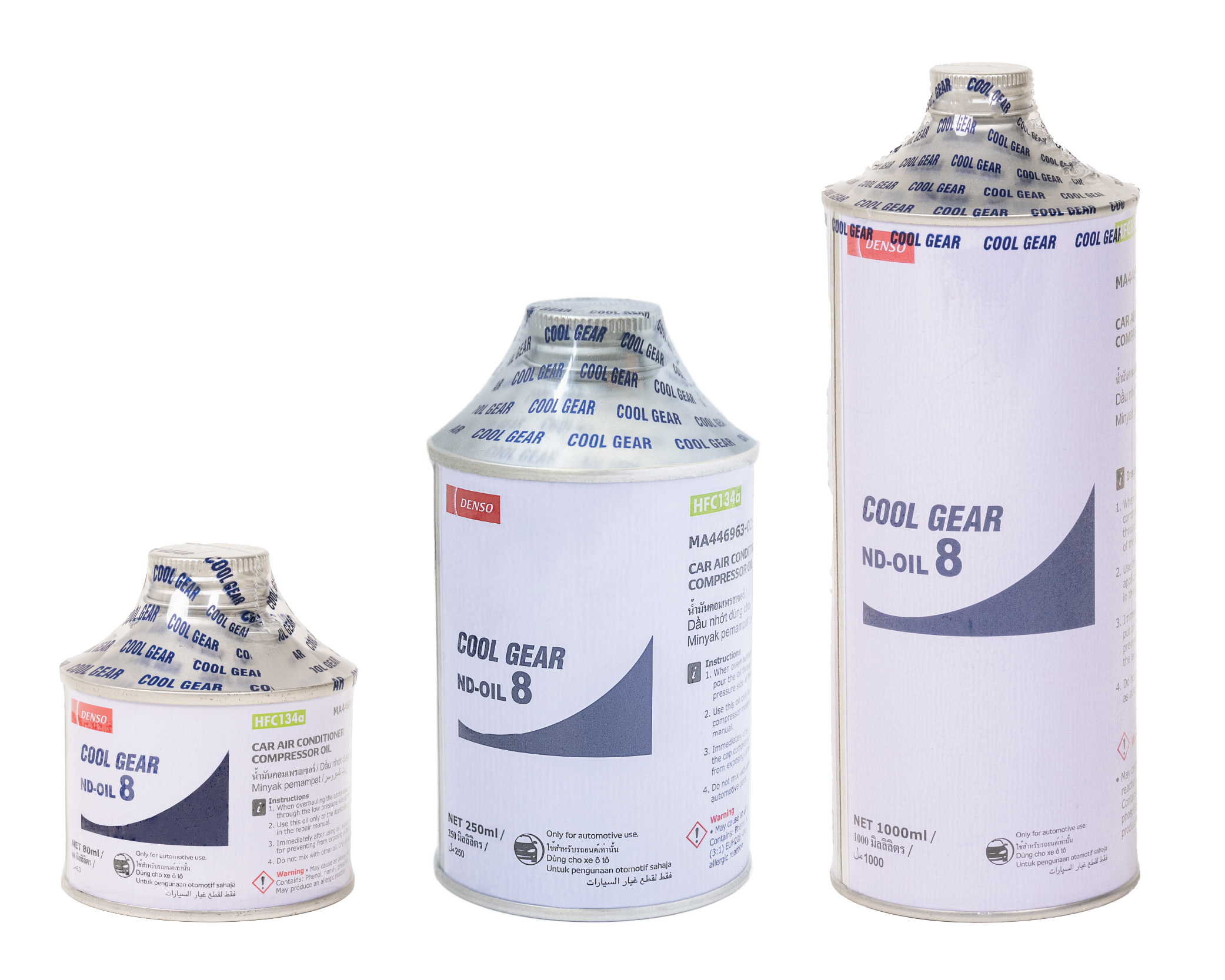

DENSO or COOL GEAR ND8 Oil

HFO 1234yf (R1234yf)

DENSO ND12 or equivalent

Vane type (TV)

HFC134a (R134a)

DENSO ND9

Electrical Type (ES)

HFC134a (R134a)

DENSO ND11 or equivalent

HFO 1234yf (R1234yf)

DENSO ND11 or equivalent
